Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: EUCHIPS / OEM / ODM
  • Model Number: PX24506
  • Type: Manual Switch
  • Max. Load Power: 216W
  • Voltage: 12-24VDC
  • Product Name: full-color control 12v 24v 3 channel PX24506 rgb strip dmx decoder
  • Input Voltage: 12-24VDC
  • Power Consumption: < 1W
  • Input Signal: DMX-512/1990 digital signal
  • Output Signal: can drive 3A(Each CH.)
  • Power Output: <216W(24V);<108W(12V)
  • Operating Temp.: 0~50℃
  • Transmission signal: DMX512(1990)
  • Size: 86(mm)*51(mm)*17.8(mm)
  • Certificates: CE, EMC, ROHS, ETL, UL

Packaging & Delivery

Packaging Details Inner Box Outter Standard Packaging Carton,or as customers' requirement.
Delivery Time 1~7 days if the goods are in stock.

factory direct price full-color control 12v 24v 3 channel PX24506 rgb strip dmx decoder



Product Description

PX series adopt the advanced micro-computer control technology and converted the DMX512/1990 digital signal widely used in international to the analog control signal. 1~3 channels output for option and each channel able to achieve 256 gradations of controling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Product Feature

  • Meets DMX512/1990256-level brightness,full-color control
  • With 3 channels output and Max.3A/CH output
  • With control system,can express perfect effect
  •  With the light color selected mechanism, and be able to control the light with 1~3 colors
  • Can set the DMX address freely
  • Can be custom-made



Technical Parameter

Product Name factory direct price full-color control 12v 24v 3 channel PX24506 rgb strip dmx decoder
ItemPX24506
Decode Channels3
Input SignalDMX-512/1990 digital signal
Output Signalcan drive 3A(Each CH.)
Power SupplyDC 12~24V
Power Dissipation<1W
Power Output<216W(24V);<108W(12V)
Operating Temperature0~50℃
Size86(mm)*51(mm)*17.8(mm)
Weight110g



Euchips ' Benefits

a.   Rich export experience for more than 10 years.

b.   Factory direct sales.

c.   OEM & ODM are welcome.

d.   Sample fee: negotiable, sample can be supplied in 7 days.

e.   High quality, complete kinds, good stability, strong practicability.

f.    Good after-sales service & point to point technical supports.

g.   Energy saving, long using life.

h.   Strong Compatibility

i.     Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.



Related Products

Item NO.Input VoltageOutput CurrentOutput PowerAddress SettingDMX Interface
CT305R12-24VDC5A*3Channels180~360WDIP SwitchRJ45
CT305RL12-24VDC5A*3Channels180~360WDIP SwitchRJ45
CT310RF12-24VDC8A*3Channels288~576WButtonRJ45
DIM101M-DIN12-24VDC5A*3Channels180~360WButtonConnector
PX2450012-24VDC5A*3Channels180~360WDIP SwitchRJ45
PX24500A12-24VDC6A*3Channels216~432WButtonConnector
PX24500D12-24VDC5A*4Channels240~480WButtonConnector
PX245016-24VDC5A*3Channels90~360WDIP SwitchRJ45/XLR-3
PX2450612-24VDC3A*3Channels108~216WDIP SwitchConnector
PX2450712-24VDC5A*3Channels180~360WDIP SwitchRJ45
PX2460612-24VDC3A*1Channel36~72WDIP SwitchConnector
PX40312-24VDC3A*4Channels144~288WDIP SwitchRJ45
PXL24-1-57612-24VDC1A*24Channels288~576WDIP SwitchConnector
PXL24-2-1152IR12-24VDC2A*24Channels576~1152WDIP SwitchConnector


Contact us immediately for further details by send an inquiry to us. You’ll find what you want.

Detailed Images



Company Information

Company Information

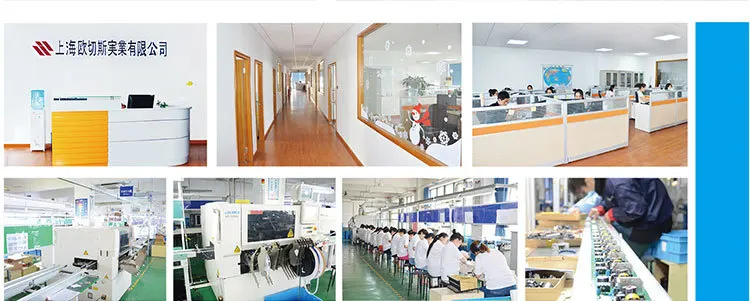

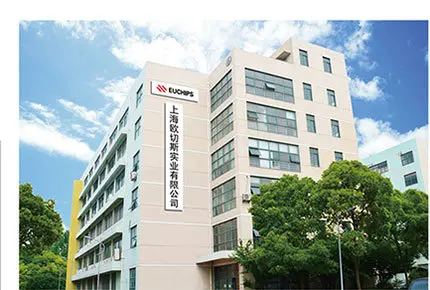

As the pioneer of LED controllers and dimmers, Shanghai Euchips Industrial Co., Ltd. has focused on controlling and dimming system since 2005.

We always try our best to provide the competitive factory prices, high quality and responsible service for our customers. And nowadays we have built good cooperative relationships with our customers from more than 90 countries. If you are interested in our products, please feel free to contact us by email or phone call, we will reply you as soon as possible (generally in 24 hours). Best Regards!


Exhibition Show



In recent years, we have attended many lighting exhibitions in Guangzhou, Russia, France, Hongkong, Thailand, Dubai, Korean, Japan and so on. We will also have booths this year, looking forward to meeting you at the fairs.



Projects



Projects


Euchips' products have been
applied to more than 200 five-star
hotels at home and abroad, such as
Shangri-La, Hyatt, Kempinski, Pullman, Crown Plaza,
and so on.

Patent & Certificate

Patent & Certificate



Packaging & Shipping

After you placing the order, we will deliver the goods ASAP if they are in stock. The goods will be sent by air, sea, international express or as customers' requirement.

  Inner box outer paper carton. Standard Packing Carton: 47*23*30cm 105pcs/carton, 15.4kg; or as Customers’ Request.
FAQ

Question 1: Are you a factory or a trading company?

Answer: We are a factory.

Question 2:  What's the main business of Euchips?

Answer: Euchips focused on LED controllers and dimmers from 2005. We have 28 engineers who dedicated  themselves to researching and developing LED controlling and dimming system.

Question 3: What' s the main products of Euchips?

Answer: Our company owns DALI, 0-10V/1-10V, DMX, Triac dimmer and controller series which have been applied to more than 200 five-star hotels such as Shangri-La, Hyatt, Kempinski, Pullman, Crown Plaza and so on.

Question 4: What Euchips will do if we have problems after receiving your products?

Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our  good after-sale service.
