Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: EUCHIPS / OEM / ODM
  • Model Number: DMX102
  • Type: Manual Switch
  • Voltage: 100-240VDC
  • Product Name: 12-24vdc RJ45 RGB dimmable dmx splitter
  • Signla Mode: DMX512 and the verious signal tranismitted by RS-485 interface
  • Interface mode: RS-485
  • Signal input socket: Input XLR-3-M; Output XLR-3-F,RJ45
  • In-out and out-in pressure-proof: >1000V
  • Power Supply: 12V-24VAC/DC
  • Digital Signal: DMX512
  • Size: 151 * 90 * 40CM
  • Color: Blue
  • Certificates: CE, EMC, ROHS, ETL, UL

Packaging & Delivery

Packaging Details Inner Box Outter Standard Packaging Carton,or as customers' requirement.
Delivery Time 1~7 days if the goods are in stock.

OEM ODM Shanghai Supplier 12-24vdc RJ45 RGB dimmable dmx splitter

Product Description

DMX102, a special digital signal distribution device use for the DMX512 digital lighting controller and plays the roles in the signal multiplication & the signal distributed output by 2 channels, and it adopts the high voltage isolation technique in various in-out interfaces. That is to say it doesn’t only apply to be as the processing amplifier while the DMX512 signal attenuation due to the remote data transmission, but also it can be used in which the various in-out interface need to be electric isolated. Since the various interfaces are isolated by each other, which is easy to avoid the control system damage caused by the control wiring, digital dimmer.. etc and make the control system work well. And also it made sure the DMX signal is in regular transmission so that the reliability of the whole control system was raised.


Technical Parameter


Product NameOEM ODM Shanghai Supplier 12-24vdc RJ45 RGB dimmable dmx splitter
Signla ModeDMX512 and the verious signal tranismitted by RS-485 interface
Interface modeRS-485
Signal input socketInput XLR-3-M; Output XLR-3-F,RJ45
In-out and out-in pressure-proof>1000V
Power Supply12V-24VAC/DC
Size151 * 90 * 40CM


Using instruction

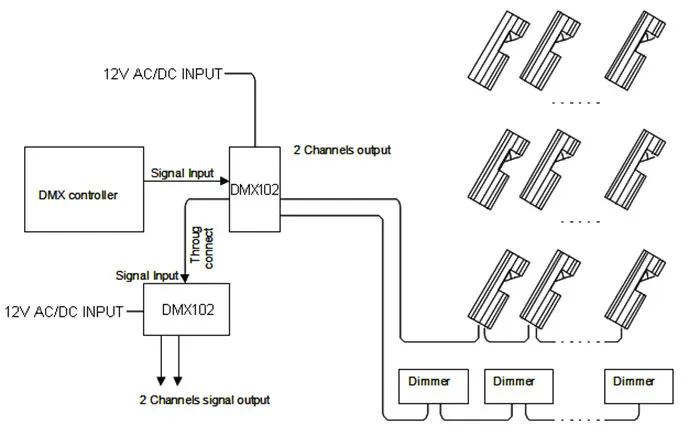

  • Click on the map as shown in wiring, DMX102 output signal for the isolated places. please note that the output can not be ground and the output signal of the ground connection.
  • Access to DMX102 amplifier on the product when DMX TERM channeled on. Configure the role of the signal circuit.
  • DMX signal transmission in the band set out to be the case please add a distance of 40M-50M. (Specifically to see to install live)

Euchips ' Benefits

a.     Rich export experience for more than 10 years.

b.     Factory direct sales.

c.     OEM & ODM are welcome.

d.     Sample fee: negotiable, sample can be supplied in 7 days.

e.     High quality, complete kinds, good stability, strong practicability.

f.     Good after-sales service & point to point technical supports.

g.     Energy saving, long using life.

h.     Strong Compatibility

i.       Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
