Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: EUCHIPS / OEM / ODM
  • Model Number: DIM107H-24
  • Type: Manual Switch
  • Max. Load Power: 100W
  • Voltage: 40-240VAC
  • Product Name: 1 channel constant voltage triac dimmable led driver
  • Input Voltage: 40-240VAC
  • Output voltage: 24V
  • Output current: 4.5A
  • Output Channels: 1 Channel
  • Product Dimension: L200*W98*H39(mm)
  • Packaging Size: L210*W108*H46(mm)
  • N.W.: 612g
  • G.W.: 673g
  • Certificates: CE, EMC, ROHS, ETL, UL

Packaging & Delivery

Packaging Details Inner Box Outter Standard Packaging Carton, or as customers' requirement.
Delivery Time 1~7 days if the goods are in stock.

quality first service upmost 40-240VAC 4.5A 1 channel constant voltage triac dimmable led driver

Product Description

EUCHIPS Triac Wiring Diagram





Feature

  •  24V DC Constant voltage output, max current 4.5A
  • Dimming rang from 40V-240VAC, Dimming curve smooth
  • Protections: Short circuit / Overload / Over temperature
  • 100% full load burn-in test
  • Support Leading edge(Triac) and Trailing edge(ELV) Dimmer.To change input voltage via phase cut, in order to achieve perfect effect, please select Dimmer properlyDimming curve difference between products can be adjust, by adjustable resistance
  • Has Power indicate LED

Technical Parameter



Product Namequality first service upmost 40-240VAC 4.5A 1 channel constant voltage triac dimmable led driver
ItemDIM107H-12
Input voltageAC40-240V
Input Frequency50/60HZ
Input current2A max
Input Power75% min
Output power100W
Output current8.5A max
Output voltageDC12V
Appearance sizeL200*W98*H39(mm)
Packaging sizeL210*W108*H46(mm)
N.W.612g
G.W.673g

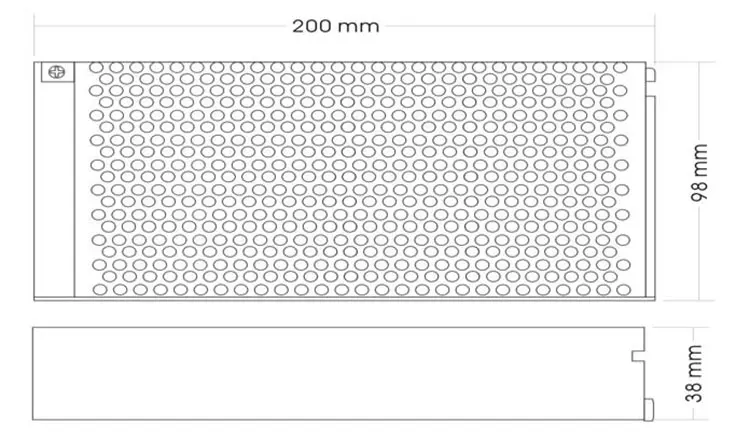

Dimension

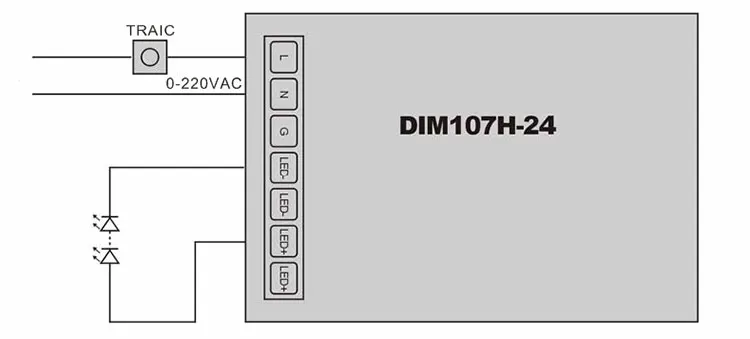

Wiring Diagram
Benefits



a.     Rich export experience for more than 10 years.

b.     Factory direct sales.

c.     OEM & ODM are welcome.

d.     Sample fee: negotiable, sample can be supplied in 7 days.

e.     High quality, complete kinds, good stability, strong practicability.

f.     Good after-sales service & point to point technical supports.

g.     Energy saving, long using life.

h.     Strong Compatibility

i.       Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
