Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Euchips
  • Model Number: WallDim103
  • Type: Manual Switch, Passive dimmer
  • Product name: 0-10v led dimmer switch
  • Output signal: 0-10V signal
  • The number of driver connected to knob: 20
  • Panel color: Ivory-white
  • Panel size: 86*86*44mm(W*H*D)
  • Packing size: 103*103*50mm(W*H*D)
  • G.W.: 140g
  • Relative humidity: 20~90% RH
  • Certificates: CE ROHS SAA

Packaging & Delivery

Packaging Details Inner Box Outter Standard Carton, or as customers' requirement.
Delivery Time Shipped in 7 days after payment

ivory white ABS designed touch panel 0-10v led dimmer switch

Product Description

WALLDIM201 is one of our high-end, multi-function WallDim touch panel controller series, with characteristics of fashionable and beautiful appearance, complete functions, easy operations, sensitive key touch, 0-10V signal controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V smooth dimming according to different requirements.

Feature

1. Suitable for 0-10V LED dimming driver

2. Installation in appliance box to DIN 49073

3. ABS material, high flame retardant

4. Fashion, and easy to use

5. Used in the study, bedroom, restaurant, bars and other places need dimming control

Technical Parameter

Product Name

ivory white ABS designed touch panel 0-10v led dimmer switch

Item

Walldim103

Output Signal

0-10V signal

The number of driver connected to knob

20

Type

Passive dimmer

Panel color

Ivory-white

Panel size

1 channel

Product dimension

86*86*44mm(W*H*D)

Packing size

103*103*50mm(W*H*D)

G.W.

140g

Working temp.

-10℃ ~ 55℃

Relative humidity

20~90% RH

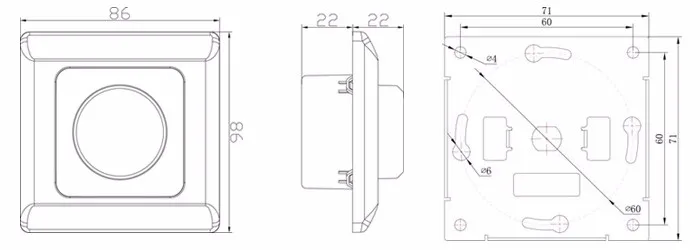

Dimension

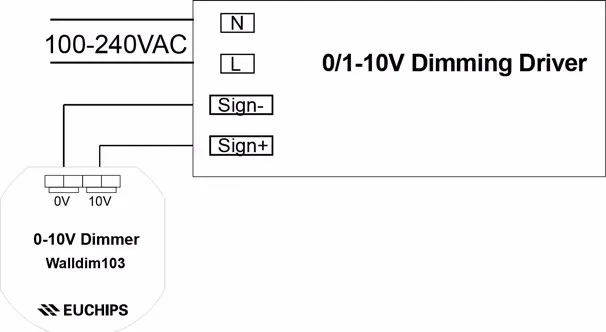

Wiring Diagram

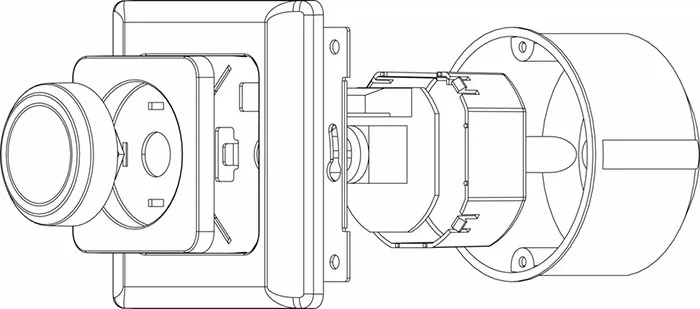

Installation Guide
1. Remove the knob, nut and panel
2. Connect wire according to Wiring Diagram. Refer to Wiring Diagram.
3. Mount the bottom box on the cassette in the wall after connecting the wire, and then nail the screw, fix it on the wall.
4. Mount panel and knob to the bottom box in the right direction.

Euchips ' Benefits

a.   Rich export experience for more than 10 years.

b.   Factory direct sales.

c.   OEM & ODM are welcome.

d.   Sample fee: negotiable, sample can be supplied in 7 days.

e.   High quality, complete kinds, good stability, strong practicability.

f.    Good after-sales service & point to point technical supports.

g.   Energy saving, long using life.

h.   Strong compatibility

i.     Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.
