Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Euchips
  • Model Number: WallDim202
  • Type: Manual Switch
  • Voltage: 12-24VDC
  • Product name: multi-function 0-10v touch panel led controller
  • Output current: 50mA
  • Channels: 2 channel
  • Product dimension: L86*W86*H38 mm
  • Packing size: L145* W145*H48 mm
  • Working temperature: -10~40 ℃
  • Net weight: 95g
  • Gross weight: 125g
  • Relative humidity: 20~90% RH
  • Certificates: CE ROHS SAA

Packaging & Delivery

Packaging Details: Inner Box Outter Standard Carton, or as customers' requirement.
Delivery Detail: Shipped in 7 days after payment

12-15VDC 2 channel multi-function 0-10v touch panel led controller

Product Description

WALLDIM201 is one of our high-end, multi-function WallDim touch panel controller series, with characteristics of fashionable and beautiful appearance, complete functions, easy operations, sensitive key touch, 0-10V signal controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V smooth dimming according to different requirements.

Feature

1. Supply voltage of 12-15VDC.

2. Output 2 channels 0-10V analog dimming signal.

3. Can adjust brightness and color temperature of lamps.

4. Show the current brightness or color grades.

5. can be installed in compliance with DIN 49073 and 86 standard wall box.

6. Fashion, and easy to use.

Technical Parameter

Product Name

12-15VDC 2 channel 0-10V Multi-function Touch Panel Controller

Model

Walldim202

Output

Voltage

0-10VDC

Current

50mA*2ch

Channels

2

Input

Voltage

12V-15VDC

Standby power

<1W

Others

Dimension

86*86*26 mm(L*W*H)

<span "="" style="color: rgb(0, 0, 0);">Packing size

145*145*48mm(L*W*H)

N.W.

105g

G.W.

140g

Working temp.

-10℃ ~ 40℃

Relative humidity

0~90% RH

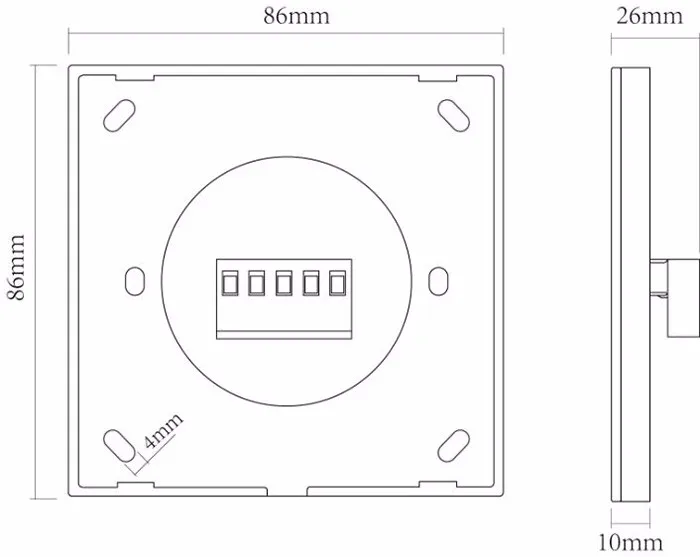

Dimension

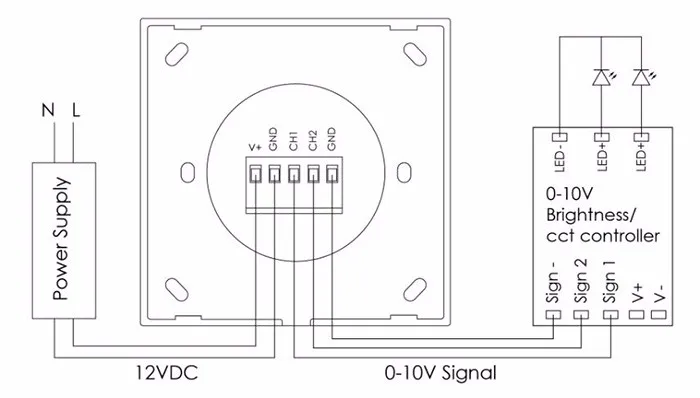

Typical Application

Euchips ' Benefits

a.   Rich export experience for more than 10 years.

b.   Factory direct sales.

c.   OEM & ODM are welcome.

d.   Sample fee: negotiable, sample can be supplied in 7 days.

e.   High quality, complete kinds, good stability, strong practicability.

f.    Good after-sales service & point to point technical supports.

g.   Energy saving, long using life.

h.   Strong compatibility.

i.     Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.

Contact us immediately for further details by send an inquiry to us. You’ll find what you want.
